Surface Emulsion Technology
Treasures of the World provides a comprehensive range of surface loading systems engineered to enhance safety and operational efficiency. Our fleet includes auger and emulsion pump trucks equipped with advanced control systems and live remote monitoring capabilities.
iDENSITY
LIVE DENSITY MONITORING - GASSED FORMULATIONS
Install the iDENSITY Meter on your underground & surface pumping systems & receive performance analytics & notifications on loading densities in real-time.
The iDENSITY Meter captures and monitors gassed emulsion samples directly in the product delivery line, providing real-time feedback to operators.
Instant Detection: Identifies inconsistencies in density during loading.
Proactive Correction: Enables early detection and correction of density variations before they negatively impact blast performance.
iGPS
PRECISE ENERGY PLACEMENT
The iGPS is a high-precision RTK system designed for the demanding requirements of drilling and blasting operations. It delivers centimeter-level accuracy in blasthole positioning, improving precision in both the design and execution of blasts.
Key Features:
Seamless Integration: Works directly with the iBLASTTRACK Pump Control System during logging and loading to monitor true hole position and collect critical data, including depth, condition, hole flags, and timing design.
Multi-Rover Capability: Supports multiple iGPS rovers for rapid logging and synchronization of individual hole data to the iBLASTTRACK Online Platform.
Automatic Recipe Selection: During loading, individual blastholes are instantly identified for automatic selection of loading recipes and mass delivery.
Comprehensive Data Capture: Pumping data and positions are automatically recorded for each blasthole, enabling accurate energy distribution modeling and post-blast quality assessment.
iLOGGER
PEER TO PEER & MESH TO CLOUD
The iLOGGER is a continuously aware device, monitoring for network connectivity even when the pump control system is powered off during transit or post-shift. Once a connection is detected, it rapidly uploads critical operational data to the iBLASTTRACK Online Platform.
Key Features:
Seamless Integration: Plugs directly into existing control systems and collects data via available communication ports, enabling older pumping fleets to come online at low cost without replacing expensive control technologies.
Mesh Networking: In areas with poor connectivity, iLOGGERs share data between machines through a mesh network, ensuring data reaches the cloud as quickly as possible.
Operator-Free Operation: Eliminates the need for operators to power on control systems at network points, streamlining data transfer and improving reliability.
iTRUCK BLEND
GPS, VARIABLE RECIPE LOADING & LIVE FIELD REPORTS
The iTRUCK BLEND trucks have a nominal capacity of 20 tons and customizable prill-to-product ratios to meet customer needs.
Key Features:
Integrated Control: iBLASTTRACK and iGPS enable live loading reports and optimized operator configurations.
Precise Energy Delivery: Variable prill-to-emulsion ratios ensure accurate blasthole energy distribution.
Live Reporting & QC: Real-time loading data, variation tracking, and iDENSITY Meter monitoring reduce non-conformances.
High-Accuracy Positioning: RTK GPS ensures precise hole placement.
Energy Efficiency: iFLOW pumps lower operational costs.
Remote Operation & Safety: Hydraulic low-reach boom, air-actuated handrails, and HMI remote control within 40m.

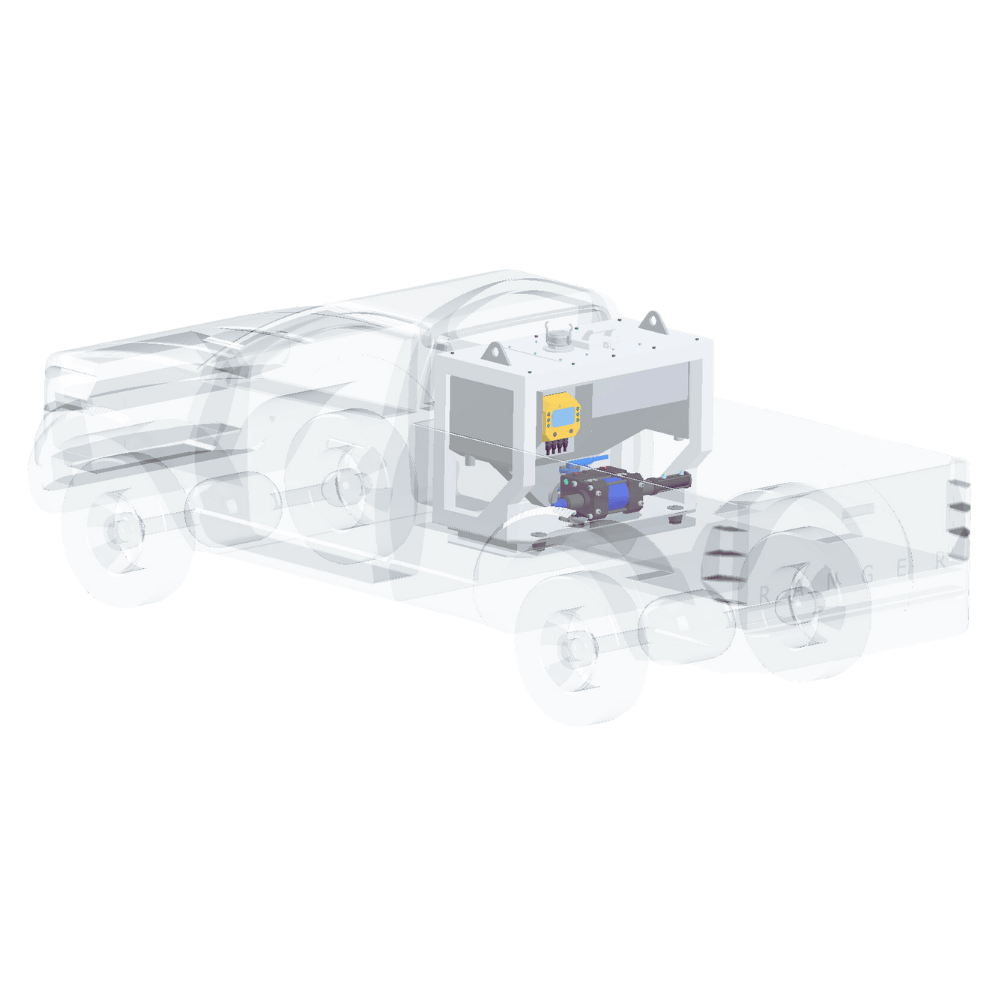

iTRUCK PICKUP
SAFETY, FLEXIBILITY & ACCURACY
The iTRUCK PICKUP is designed for flexible underground, surface, and civil loading operations. Its compact design allows access to remote or confined blasting patterns, saving travel and waiting time for larger fleet systems.
Key Features:
Flexible Operations: Ideal for secondary blasting, wall control, and civil projects, freeing pump trucks and operators for other tasks.
Safety & Efficiency: Low-friction iFLOW positive displacement pumps improve safety, consistency, and productivity in manual and automated loading.
Customizable Capacity: Payloads from 400 kg to 1,500 kg with flow rates up to 120 kg/min. Single or dual delivery lines available.
Integrated Control & Reporting: iBLASTTRACK and iGPS provide live loading reports, energy placement tracking, and real-time prompts for operators to optimize blast outcomes.
Gassed or MB-Sensitized Formulations: Supports precise mass placement for all approved pumpable products.
The iTRUCK PICKUP combines mobility, precision, and efficiency, making it ideal for challenging blasting and civil loading scenarios.
iTRUCK PUMP
GPS, VARIABLE RECIPE LOADING & LIVE FIELD REPORTS
Key Features:
Integrated Control & Monitoring: iBLASTTRACK control and GPS technology provide live reports to mine management while enabling operators to optimize loading patterns with automatic deck or variable-density delivery.
Real-Time Data & QC: Loading and quality reports are delivered directly to managers, with variation tracking to reduce non-conformances.
Safety & Performance Sensors: Supports integration with safety systems and live density monitoring for precise product control.
Customizable Design: Additive tanks, chassis, and product mixing ratios are tailored to meet individual customer requirements.
The iTRUCK PUMP trucks combine flexibility, precision, and real-time monitoring for efficient and safe loading operations.
