Underground Emulsions
Treasures of the World’s underground loading systems are engineered to enhance quality and consistency in challenging underground loading operations. With low energy requirements, improved safety, and the flexibility to power pumps using battery or compressed air, our systems are well suited for hard-to-reach environments such as narrow-vein mining and shaft sinking. Development loading systems support the simultaneous operation of up to four parallel emulsion pump lines for high-speed development, while production loading systems are capable of pumping blast holes up to 60 meters in length.
iRING
QUALITY, CONTROL & OVERSIGHT IN PRODUCTION HOLES
The Treasures of the World iRING Pumping System is engineered for flexible loading in both lateral and uphole operations.
Key features include:
Dual iFLOW Pumps: Utilizes in-house IP with dual iFLOW pumps to ensure consistent pressure and flow, even under heavy-duty production loading conditions.
Reduced Maintenance: iFLOW Pumps eliminate unpredictable slippage and wear found in progressive cavity uphole loading systems, minimizing downtime and maintenance costs.
iCHARGER
PRODUCTIVITY, LIVE MONITORING & REPORTING
The iCHARGER loading system was designed to offer the advantages of emulsion explosives to confined & inaccessible mining areas. The pneumatic, three component pumping system delivers emulsion, additive solution and hose lubrication to the delivery lance to sensitize bulk gassed formulations during the loading cycle.
Equipped with an electronic control & reporting system, the iCHARGER can be adjusted to deliver a precise mass of explosives during loading operations. During loading the controllers monitors loading practices & pump safety conditions, providing feedback to operators during loading.
iDENSITY
LIVE DENSITY MONITORING - GASSED FORMULATIONS

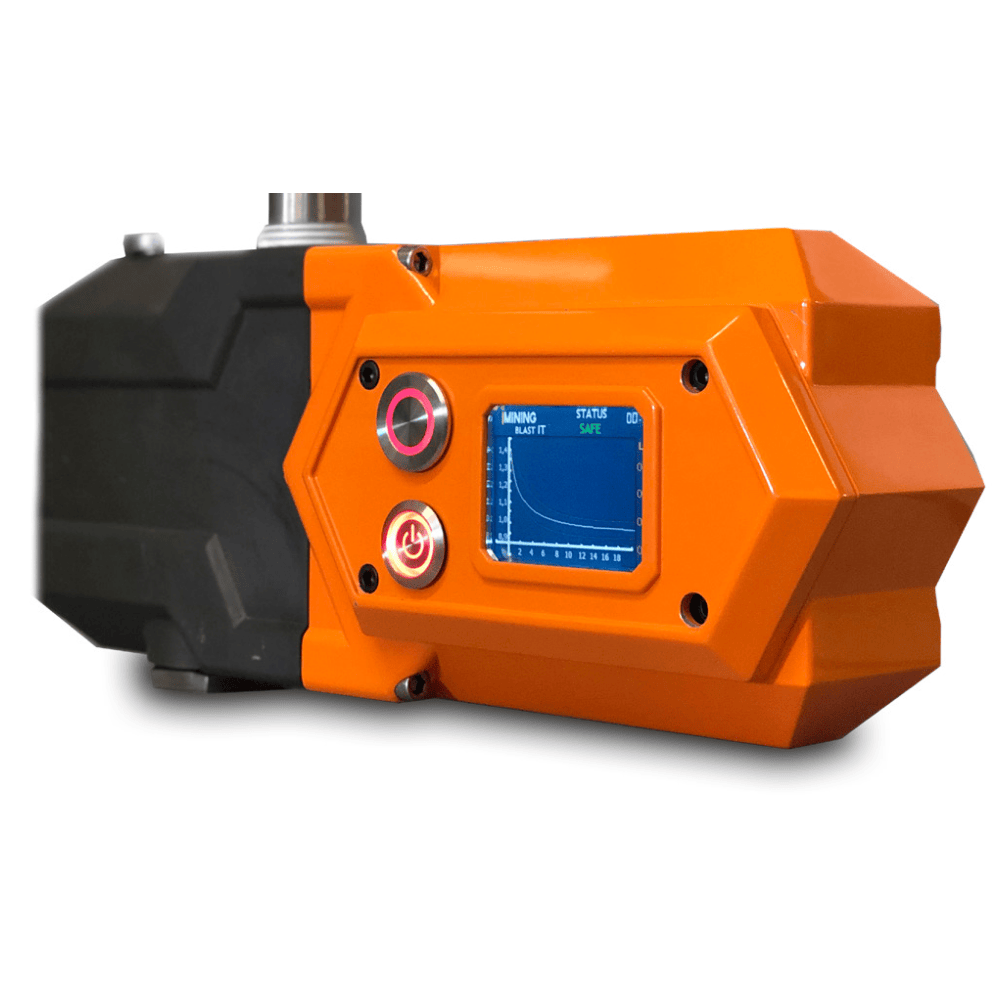

Install the iDENSITY Meter on your underground & surface pumping systems & receive performance analytics & notifications on loading densities in real-time.
The iDENSITY Meter captures and monitors gassed emulsion samples directly in the product delivery line, providing real-time feedback to operators.
Instant Detection: Identifies inconsistencies in density during loading.
Proactive Correction: Enables early detection and correction of density variations before they negatively impact blast performance.
iFLOW
SAFETY, EFFICIENCY & CONSISTENCY
The iFLOW Pump Series is designed to meet the efficiency demands of modern battery vehicles while enhancing the safety and consistency of loading operations.
Low-Friction Design: Reduces energy losses by up to 80% compared to traditional progressive cavity systems, significantly lowering heat buildup and energy costs.
High Energy Conversion: Optimizes the volume and pressure of oil required, enabling operations in previously inaccessible mining environments where energy availability was limited.
iSINK
HIGH SPEED LOADING WITH FOUR DELIVERY LINES
The iSINK Pumping System is engineered to enhance the speed and reliability of shaft sinking operations.
Parallel Pumping: Deploys four parallel iFLOW UN Class 5.1 emulsion delivery lines simultaneously for faster, more consistent loading.
Customizable Capacity: Available in a range of tank diameters and carrying capacities to suit the specific requirements of each sinking operation.
Flexible Energy Options: Operates using air, electricity, or hydro-power.
Advanced Control: Equipped with the iBLASTTRACK Control System for remote monitoring and oversight. Pumping lines are managed via RF communication with the iBLASTTRACK
iXD
FAST, EASY & RELIABLE QUALITY CONTROL
The iXD Compact Density Device is designed to measure the loading density of chemically sensitized emulsion formulations. It is suitable for both surface and underground operations and is available in multiple sizes, calibrated for the unique properties of each formulation.
Reusable, Self-Flushing Design: Automatically clears previous samples as new ones are taken, eliminating the need for manual cleaning and reducing calculation errors common with traditional scale-based methods.
Easy Maintenance: Simply flush with water or air at the end of daily sampling activities.
Built for Mining Environments: Engineered to withstand the extremes of both underground and surface operations, enhancing the speed, ease, and reliability of quality control at the blastface.
iBLASTTRACK
REAL TIME DATA - REAL TIME DECISIONS
The Wireless HMI Control & Data Capture system enables real-time monitoring and management of pumping operations, safety, and inventory.
Key Features:
Live Monitoring: Track pump safety and inventory records during both loading and maintenance operations.
Operator Feedback: Collect data mid-loading by prompting operators for immediate input, including sample requests and density confirmation when non-conformances occur.
Customizable Data Collection: Define which data points are collected and when, ensuring operational precision.
